guide to fitting curtain poles

You will find all the information required for you to choose your curtain poles, as well as detailed instructions on measuring and fitting.

If you need any help or further information please use the Live Help button above or call us and one of our sales team will be happy to assist you.


Measuring InstructionsBack to top

Do I Measure in Centimetres or Inches?

All PolesandBlinds products are shown in both units so you can choose either format. You must take care when you are measuring to stay in whichever unit you decide to use to avoid confusion.

Measuring Where There is an Existing Pole

To replace an existing pole with a new one, simply measure the total length of the existing pole excluding the finials. This will give you the total pole length you require to start shopping.

For example: Your pole measures 230cm (90 ½ inches), you would choose a 240cm (94 1/2"), as these are sold in set lengths, and cut to fit.

Measuring For A New Pole



Window recess measurement

length of curtain pole

Recess "A"

Add the measurements below to each side of the recess measurement "A"

100cm  (39”)

15cm   (6”)

180cm  (71”)

20cm   (8”)

240cm  (95”)

25cm   (10”)

360cm  (142”)

35cm   (14”)

480cm  (189”)

45cm   (18”)

600cm  (237”)

52cm   (21”)

Where curtain pole lengths are stated they do not include the finial length (the decorative pole ends), if you require to know the finial length, check the product specification tab when you select your pole and finials.

Curtain pole length with curtain stack back

Click here to start shopping for Curtain Poles.


Fitting Curtain PolesBack to top

How to measure curtain poles video

Click on the video below for an easy to follow demonstration on How to Fit a Metal Curtain Pole.


Handy Hints: Measuring and Fitting Curtain PolesBack to top

Hints and tips for measuring and fitting curtain poles

Measuring Tips

  • A metal tape measure is recommended for accuracy and ease of use.
  • Always check your measurements more than once and write them down as you go along.
  • Stay safe by using a step ladder or a sturdy chair, do not over-reach, you will need help for large windows and long poles.
  • When taking measurements it is useful to have someone to hold the other end of the tape to ensure accuracy.
  • If you have limited fixing space above your window, take this measurement and note it down. Check the bracket depth of your chosen product to ensure it will fit within the space above your window opening.
  • If space is limited either side of the window a smaller finial would be more suitable. Finial lengths are given in the finial section.
  • If your pole is for wave headed or widely-spaced eyelet headed curtains you will need an extension bracket. This is also needed if you have an overly protruding window sill to ensure adequate clearance between the pole and the wall.

Fitting Tips

  • Use a pencil to mark your fitting positions on the wall as this will be easier to remove.
  • Be careful when you take the pole and fittings out of the packaging, avoid using a sharp instrument which may damage the contents. To ensure you have all the fittings, set them out and check them against the fitting guide you will find in the box.
  • Before you start clear the window sill of any ornaments and protect the your furniture and carpets from any brick dust that may arise from the drill.
  • For drilling through tiles, it is recommended that a tile drill bit is used without the hammer setting to safeguard against cracking them.
  • When you have fitted the brackets it is a good idea to position the pole without the curtains and stand back to check everything looks visually correct. This is important you have uneven ceilings or floors.
  • Cleaning the area with a vacuum cleaner as soon as you have fitted the brackets will keep your curtains from becoming marked when you hang them.
  • If you are fitting the pole into wood, you will not need to use the drill or rawl plugs, just make a small hole with a bradawl and then use wood screws to fit the brackets.
  • If you are fitting your pole across the front of the window and this measurement is not pre-determined by your curtains, then fit your pole about 8-12 cms above the window frame. This is generally the most common position as it will ensure that the header tape of the curtains is not on show from the outside, but also helps to reduce light seepage when the curtains are drawn during daylight hours.
  • If you do have your curtains then you will need to bear their length in mind as at this point, adjusting the position you fit the pole above the window opening may save a lot of time having to re-hem the bottom of the curtains.
  • Pole lengths may be shortened using a hacksaw.
  • Check if you are unsure about the location of pipes or cables with a detector.

Click here to start shopping for Curtain Poles.



General Fitting Instructions for Curtain PolesBack to top

How to fit a curtain pole

This is a standard guide for installing a curtain pole, your specific pole type will be supplied with full relevant instructions.

You Will Need

A tape measure (metal ones are best)

A pencil ( a pencil is better than a pen as you can remove the marks more easily) and paper

A pair of steps

An electric drill or a cordless drill (preferably with a hammer option)

A screw driver

A spirit level. This is not essential but is helpful to check your track is being fitted level. Alternatively you can always measure down from the ceiling or up from the floor or window sill to the holes as a double check, but this is not a guarantee as the ceiling may be slightly sloping. The most important thing is to make sure it visually looks right.

It is useful to have a length of string and a couple of nails (we use a pair of bradawls in our videos). This may be used to stretch between the bracket holes to check the level before the brackets are fitted.

General Guide for Curtain Pole Bracket Location



Tools for fitting curtain poles

If you already have your curtains, then to determine the height of the position of the curtain pole above the window (A) you will need to measure the drop of the curtains and add the measurement from the top inside of a curtain ring to the bottom outer edge for heading which will hang from the curtain rings.

For eyelet curtains your drop measurement should be taken from the top inside of the eyelet ring to the bottom of the curtain, adding an extra 1cm for full length curtains to allow for floor clearance.

For a short curtain use the drop length to measure from approx.12cms below the sill to mark the height (B) for the bracket location above the window recess, for curtains to sit on the sill measure from here instead, plus 0.5cm for clearance.

For a full length curtain use the drop measurement from the floor plus 1cm to mark the height (C) for the bracket location.

If you do not yet have your curtains, you may choose a bracket height of 5-10cm above the window recess. This will give the best visual appearance, but your final choice may be determined by the height of your ceiling.

Curtain pole bracket height

Measure for bracket using a spirit level

Measurment for curtain pole fixing bracket

Centre bracket for extra long pole


Fitting Your Curtain Pole in Easy StepsBack to top

1. When you have your bracket positions marked on the wall use your pencil to mark the fixing holes as shown in the diagram below. If your bracket has a key hole fixing, then fit the top screw ( top of the key hole ) first, ensuring you have the bracket the right way up. Then you may fit the key hole bracket so that it drops down on this screw and then drill and fit the bottom screw to hold it in position.

Mark bracket fixing holes

2. If fixing to a wooden batten, drill 2mm pilot holes first. If fitting directly to a masonry or studded wall drill with the right size masonry bit, the instructions for your curtain pole will include this information. If you are unsure about electric cables or pipes in the wall, you can double check with a detector, although it is very unlikely that these will be placed close to the top of the window recess.

Drill bracket hole

3. Insert rawl plugs into the holes you have drilled. You may need different plugs depending on your wall type, if you have a stud wall with plasterboard for instance.

Fit rawl plugs into the drilled holes

4. Fix the bracket securely to the wall using the correct screws. Use wood screws if fixing directly to a wooden batten.

Fix the bracket in position with the screws

5. Repeat the fixing process for all the brackets required.

6. Ensure you have measured correctly the length of the pole needed to fit your window. The required length is usually the width between the brackets with an additional 5 - 6cms either end of the pole so that there is enough room for one curtain ring between the bracket and the finial.

7. If it is necessary to cut the pole to the correct length, then remove the finials first, using the allen key supplied and cut with a hacksaw for a metal pole or a wood saw for a wooden pole. Remember to check your measurement on your pole twice before cutting. If you are cutting down a two-piece pole, the join will be in the middle so always cut an equal length from finial of each pole.

8. You can now assemble your pole.

Assemble the curtain pole

9. Slide the correct number of curtain rings onto the pole, remembering to leave two rings to place at either end between the brackets and the finials.

10. Place your pole on the brackets, you may need help with an extra long pole. Measure so you have an equal length of pole protruding from each end bracket, which will ensure that the pole will be centred.

Locate the pole onto the bracket

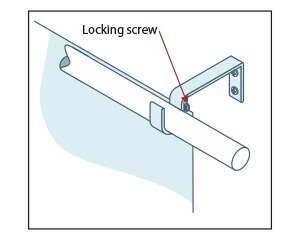

11. Secure the pole to the brackets with the locking screws provided. The finials can now be fitted on the ends of the poles after placing a curtain ring between the curtain bracket and the finial, using the fixing screws provided.

Fit the curtain rings and finials

12. You may now fit your curtains by slipping curtain hooks through the eyelets on the curtain pole rings.

Click here to start shopping for Curtain Poles.


Types of Curtain PoleBack to top

Metal curtain pole with modern finial

Metal Poles

Metal poles are currently the most popular choice for hanging curtains, they are well suited to modern and contemporary interiors with a wide range of styles, finishes and colours to choose from.
Metal curtain poles are generally stronger than wood, so thinner diameters may be used when hanging medium to heavy weight curtains. We recommend a 28mm (1 1/8") diameter for general curtain use and for all heavy interlined curtains you should use no less than a 35mm (1 3/8") diameter or above.

Click here to view all Metal Curtain Poles.




Wooden curtain poles

Wooden Poles

Wooden poles are best suited to traditional window interiors and, depending on your style of décor, they can look fantastic in bedrooms, living rooms and dining rooms. Contemporary wood treatments will soften the overall feel of a room and compliment any wooden furniture in a similar finish. Available in many more colour finishes than you may imagine, the wooden pole should be considered as an excellent decorative choice.

Some of the most popular colours of stains available include mid oak, dark oak, light oak, antique pine, beech, light ash, walnut, rosewood and mahogany and many more. Our wooden poles are also available painted in many colours and styles including many shades and tones of white, cream, black, silver, gold and gilt and many more.

For hanging medium to heavy weight curtains we recommend a curtain pole diameter of no less than 35mm (1 3/8"). For heavy interlined curtains a 50mm (2") pole would be prudent.

Click here to view all Wooden Curtain Poles.




Bay window curtain poles

Bay Window Poles

There are three different types of poles for bay windows –

Standard kits - Usually made up for 3 sided bay windows, they can be cut to size to fit your bay and include all the necessary components and fitting instructions.

Made To Measure – These poles are made to the exact contours and size of your bay at the factory. They can be made to any length and are suitable for all sizes of bay windows.
The process is simple – download a Bay Window Measuring Form, fill it in and send it back to us. We will then check your measurements and angles are correct and before your pole is be made for you.

Create Your Own – Our selected range of "Create Your Own Curtain Pole" allows you to fabricate your own bay window pole by purchasing all the components you need, individually. Instructions for what components are required for your size bay can be found in the "Create Your Own Bay Pole" section.

Click here to view all Bay Window Poles.




Double curtain poles for privacy

Double Curtain Poles

Double curtain poles may be purchased as sets, or made up using components from the "Create Your Own Curtain Pole" range.

Double pole sets allow you to dress your windows with two pairs of curtains or voiles and curtains. The main set of curtains are usually located on the front pole, with nets or voiles fitted on the back pole. Great for privacy issues and will also camouflage an unattractive view while still allowing daylight into the room.

Click here to view all Double Metal Curtain Poles.




Eyelet and tab top curtain poles

Eyelet and Tab Top Curtain Poles

Eyelet curtain poles are generally the same as standard curtains poles, the main differences are that eyelet poles are supplied with no curtain rings.

The other main difference is eyelet curtain poles are supplied with extendable brackets so the pole can be set to project further away from the wall, making space behind the pole to allow for the ‘S’ wave shape created by the heading of the curtains.

.

The diameter of the eyelets used on eyelet curtains is 40mm (1 9/16") , but please check this before you buy your pole. For this size eyelet a 28mm (1 1/8") diameter pole is ideal, leaving enough clearance to easily open and close the curtains without snagging.

Eyelet curtains are very popular, but they do not work well in bay windows as the eyelets cannot pass over the support brackets.

Click here to view all Eyelet Curtain Poles.




Extra Long Poles

PolesandBlinds have a section devoted to curtain poles available in extra long lengths. These are specially designed for hanging curtains in large windows and patio doors.

Made to Measure poles, such as the Silent Gliss Metropole range, are ideal for large windows as the pole may be purchased up to 6 metres in one piece. This may be fixed to the wall or ceiling and is designed to allow the curtain to pass without hindrance along the full length of the pole.

Click here to veiw all Extra Long Curtain Poles.




Recess Window Poles

Recess window curtain poles allow curtain pole to be fitted between to walls or surfaces, ie in a window recess or dorma window. Simply choose the correct diameter and length curtain pole you require and then add the matching recess brackets which you will find in the related items to the main product.

Click here to view all Recess Curtain Poles.




Corded Poles

Corded poles allow you to open and close your curtains with a cord system within the pole and the control cord located at the end of the pole, much like a corded curtain track.

Delicate fabrics or light coloured curtains maybe marked or damaged over time if they are constantly being handled. In this case a corded pole is the ideal solution. Corded poles are also the answer to hanging curtains in a tall window, where operating by hand may be difficult.

Click here to view all Corded Curtain Poles.




Extendable Poles

Metal extendable poles are available for use where you may not wish to use a permanent curtain pole fixing, that has been cut to size. A pole may be purchased in the size range for the length your require.

Using adjustable length curtain poles should be considered as a temporary fitting, for instance for tenants in a rented property, as they may be removed and reused in a different window, at a later date. Generally, a standard pole fitting is aesthetically the best option.

 Click here to view all Extendable Curtain Poles.




Made to Measure Poles

Made in the factory to meet your specific requirements, they are made to an exact length, colour, or shape, even for a bay window.

Made to Measure poles are available to suit your exact requirements, so that whatever way you want to hang your window covering, this can be catered for. Please also consider Angela's other site for luxury brand curtain poles - WellSewnUK




Mix and Match Poles

PolesandBlinds range of Mix and Match poles lets you purchase separate components, allowing you to customise the items needed for your particular windows.

Mix and Match poles and accessories give you complete freedom over your choice of pole.

Click here to view all Mix and Match Curtain Poles.




Pole Lengths Only

Lengths of wooden and metal poles maybe purchased separately in various colours and diameters. These are not supplied with brackets, curtain rings or finials.

This is a convenient way for you to replace an existing pole, or match up with specific numbers of brackets and components for your non-standard window.

 Click here to view all Pole Lengths Only.




Portiere Rods & Drapery Arms

Portiere Rods – Portiere Rods - If you have draft excluding curtains in your doorway, portiere rods lift the curtain off the floor,as the door opens, to stop the curtain fabric catching under the door.

Drapery Arms – Drapery Arms or Dormer Rods are designed for hanging curtains in a small window area, where there is little or no space for the curtains to open without restricting the light.
The Drapery Arm swings away from the window with the curtains attached, rather than opening and closing the curtains on a conventional curtain pole.

 Click here to view all Portiere Rods & Drapery Arms.




Net Rods and Net Wire

Net Rods are a modern solution for hanging light weight curtains and voiles. There is no need for cutting or drilling as the rubber ends hold the rod under tension against the window recess. Net rods can be used in windows decorated with any finish including tiled, painted and wallpapered, and are available in different lengths to fit windows up to 250cm.

Net Wire is the traditional way of hanging net curtains, available supplied with hooks and fittings, easy to install and can be cut to length with a pair pliers.

 Click here to view Net Rods and Net Wire.
